Resonant Capacitor for Power Electronics

Short Description:

  • Polypropylene film dielectric
  • PCB mountable
  • Low ESR, Low ESL
  • High frequency
  • Apply for resonant charging, frequency spreading, aerospace, robotics, induction heating etc

The best design for your electronic appliance.

Product Detail

Product Tags


● LLC typology in resonant circuits.

● Widely used in power electronic devices in series /parallel resonant circuit,

●  Switched-mode  power  supply.

●  IGBT  Snubber.


1. Resonant capacitors with PP film dielectric popular applied for resonant charging,  Frequency Spreading,  Aerospace, Robotics industries;
2. In such electronics, capacitors and inductors have parasitic inductance and capacitance, respectively. Since a capacitor and inductor in series creates an oscillating circuit, all capacitors and inductors will oscillate when stimulated
3.they are capable of storing significant amounts of charge (electrons) in an electrical network (circuit) whereas an inductor

stores energy in a magnetic field.

Technical data

Climatic Category /Passive Flammability Category 55/105/56
Operating temperature range -55℃~+105℃
+85℃ to +105℃:Decreasing factor1.25%per ℃ for Un(DC)
+75℃ to +105℃:Decreasing factor1.35%per ℃ for Un(AC)
Capacitance range 0.00022~8μF
Rated voltage 250V~2000V
Capacitance tolerance ±5%(J);±10%(K);±20%(M)
Dissipation factor ≤1×10³at  1kHz,20℃
insulation resistance V test(VDC)1min,20℃          Cn≤0.33μF         Cn>0.33μF
100±15                 ≥100GQ             ≥30000s
DC test voltage 1.6Un,5 s


Unpc(V) Dv/dt (V/us)
P=10mm         P=15mm         p=22.5mm      P=27.5mm       P=37.5mm       P=52.5mm
250 1000 550 250 200 / /
400           1500           900             500            300             /              /
630 3200 2500 1500 900 500 300
1000             6000            3300              2100            1000              800              500
1600 / 6000 3000 2000 1200 800
2000              /              10000             5000            2200             1500             1000

Part number system

Model Capacitance Un(DC) Cap.tol Number
of leads
P1 P2 Length
of leads
feature code
1      2 3    4    5  6 7    8    9 10   11 12   13 14   15 16 17
R      P S      1      0    5 0       6      3 0 4     P1 P2     L 0
1      ~ 3      位 :  型号代码/Model
4 位 :  标称容量/Nominal Capacity
e.g.105=10×10⁵pF  =1μF
7 10     位 :  额定电压(直流)/Un(DC)
11    位 :  容量偏差等级/Capacitance Tolerance
12    位 :   引出数量/Number of leads
2:2 pins
4:4 pins

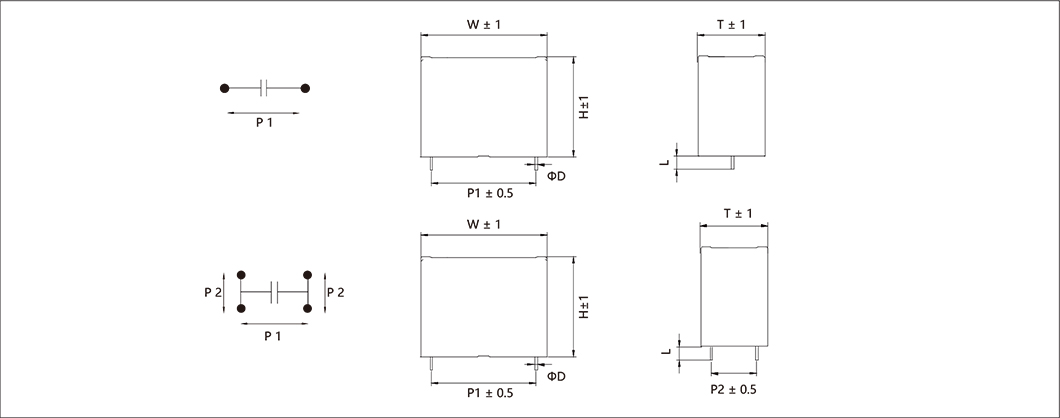

13    位 :  脚距P1/Distance between mounting holes P1
2:P1=10 6:P1=37.5
3:P1=15 7:P1=52.5
4:P1=22.5 8:others
14    位 :  脚距P2/Distance between mounting holes P2
0 : 无 2:P2=20.3
1:P2=10.2 3:others
15    位 :   引出长度L/Length of leads
16     ~ 17    位 :  内部特征码/Internal feature code

Resonance /Snubber RMJ-PS series

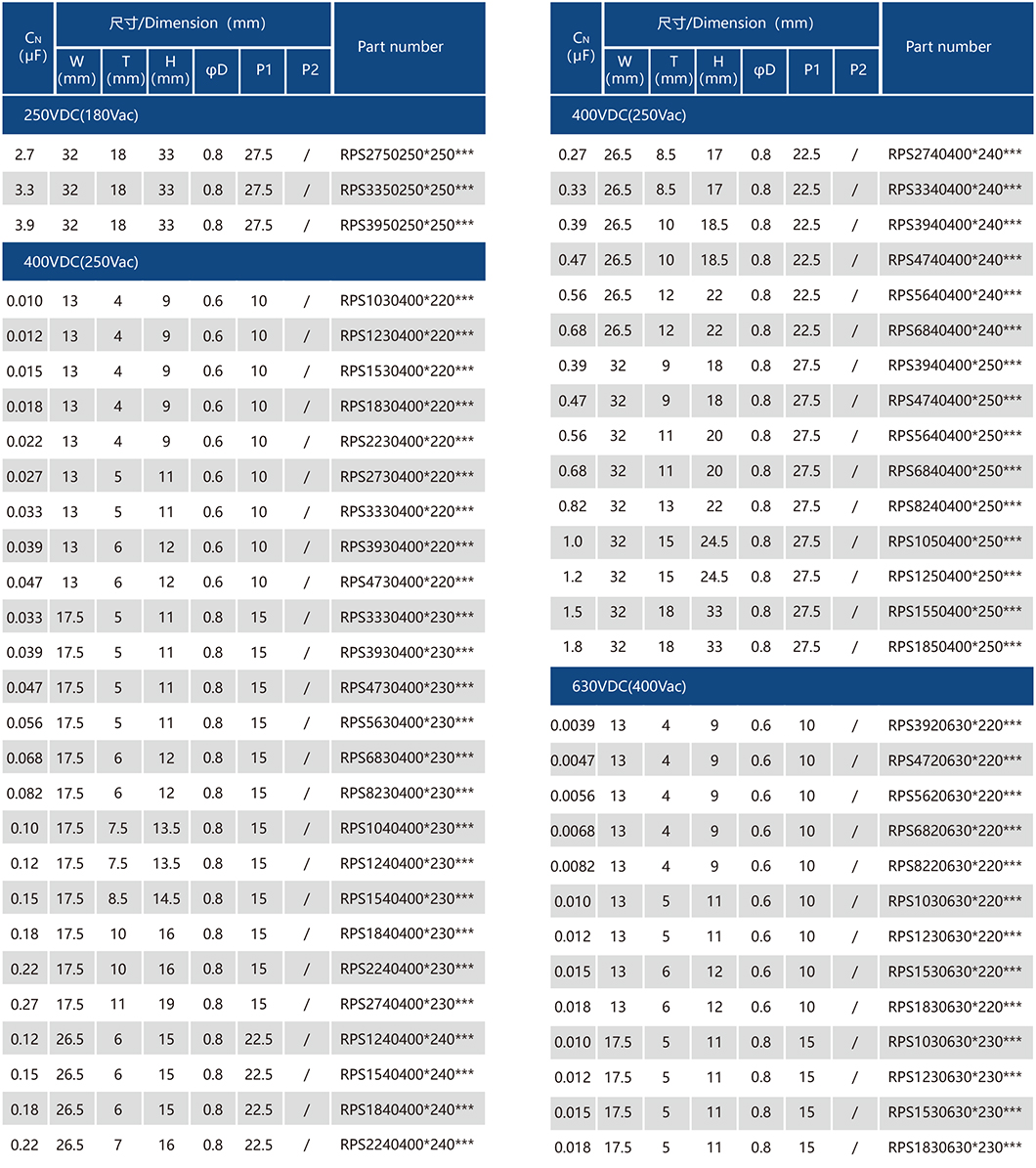

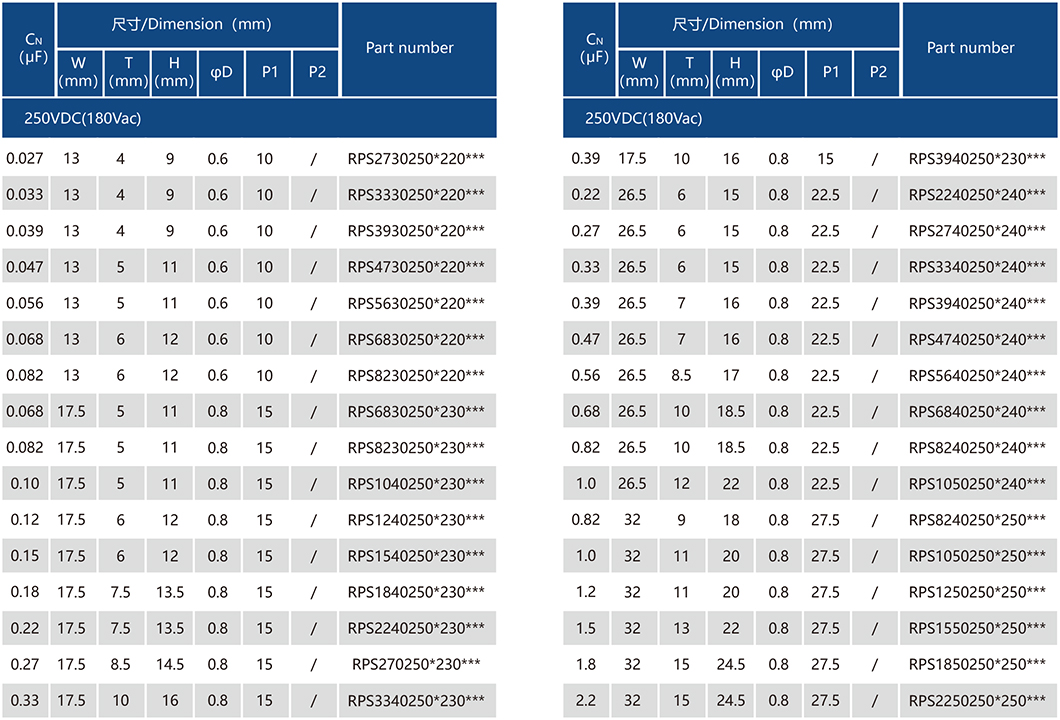

Specification table
