AC filter Specification
Power conversion has been an essential technology in industrial applications, commercial and even medical applications as well. Therefore, when it comes to selecting power conversion solution for any application, it is crucial to take product performance such as power loss into account. CRE New Energy offers reliable and optimized power conversion solution for industrial, medical and consumer sectors. Our metallized film DC-Link capacitor has been widely implemented in AC/AC topology of motor drivers and inverters as an intermediate DC component.
Specification table
Voltage | 550V.DC(85℃) 600V(70℃) | |||||||||||
Cn (uF) | number of wires | φD (mm) | L(mm)±1 | T(mm)±1 | H(mm)±1 | Pitch(mm) | ESR (mΩ) | ESL (nH) | dv/dt (V/μS) | Ipk (A) | Irms(A) (@10KHz 85℃) | |
P1 | P2 | |||||||||||
4 | 2 | 0.8 | 32 | 11 | 21 | 27.5 | 20.5 | 10 | 75 | 300 | 4 | |
7 | 2 | 0.8 | 32 | 15 | 25 | 27.5 | 11.5 | 10 | 75 | 525 | 6.5 | |
10 | 2 | 1 | 32 | 18 | 28 | 27.5 | 8 | 10 | 75 | 750 | 9 | |
12 | 2 | 1 | 32 | 21 | 31 | 27.5 | 7 | 10 | 75 | 900 | 10 | |
20 | 2 | 1.2 | 42.5 | 24.5 | 27.5 | 37.5 | 7 | 10 | 40 | 800 | 11 | |
30 | 4 | 1.2 | 42.5 | 24 | 44 | 37.5 | 20.3 | 6.5 | 10 | 40 | 1200 | 15 |
45 | 4 | 1.2 | 42.5 | 29 | 37 | 37.5 | 20.3 | 6 | 10 | 40 | 1800 | 17 |
60 | 4 | 1.2 | 42.5 | 30 | 45 | 37.5 | 20.3 | 4.5 | 15 | 40 | 2400 | 18.5 |
60 | 4 | 1.2 | 42.5 | 33 | 45 | 37.5 | 20.3 | 4.5 | 15 | 40 | 2400 | 18.5 |
75 | 4 | 1.2 | 42.5 | 35 | 50 | 37.5 | 20.3 | 3 | 15 | 20 | 1500 | 19 |
75 | 4 | 1.2 | 57.5 | 30 | 45 | 52.5 | 20.3 | 3.2 | 15 | 20 | 1500 | 18 |
100 | 4 | 1.2 | 42.5 | 40 | 55 | 37.5 | 20.3 | 2.8 | 15 | 20 | 2000 | 20 |
100 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 3 | 15 | 20 | 2000 | 22 |
110 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 3 | 15 | 20 | 2200 | 23 |
120 | 4 | 1.2 | 57.5 | 38 | 54 | 52.5 | 20.3 | 2.8 | 15 | 20 | 2400 | 25 |
150 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 2.5 | 15 | 20 | 3000 | 28 |
150 | 4 | 1.2 | 57.5 | 45 | 55 | 52.5 | 20.3 | 2.5 | 15 | 20 | 3000 | 28 |
200 | 4 | 1.2 | 57.5 | 45 | 65 | 52.5 | 20.3 | 2.3 | 15 | 20 | 4000 | 28 |
Voltage | 700V.DC(85℃)800V(70℃) | |||||||||||
Cn (uF) | number of wires | φD (mm) | L(mm)±1 | T(mm)±1 | H(mm)±1 | Pitch(mm) | ESR (mΩ) | ESL (nH) | dv/dt (V/μS) | Ipk (A) | Irms(A) (@10KHz 85℃) | |
P1 | P2 | |||||||||||
3 | 2 | 0.8 | 32 | 11 | 21 | 27.5 | 23 | 10 | 75 | 225 | 4 | |
5 | 2 | 0.8 | 32 | 15 | 25 | 27.5 | 14 | 10 | 75 | 375 | 6 | |
8 | 2 | 1 | 32 | 18 | 28 | 27.5 | 8.5 | 10 | 75 | 600 | 8.5 | |
10 | 2 | 1 | 32 | 21 | 31 | 27.5 | 7 | 10 | 75 | 750 | 10 | |
10 | 2 | 1.2 | 42.5 | 24.5 | 27.5 | 37.5 | 10 | 10 | 40 | 400 | 10 | |
20 | 4 | 1.2 | 42.5 | 24 | 44 | 37.5 | 20.3 | 7.5 | 10 | 40 | 800 | 12 |
25 | 4 | 1.2 | 42.5 | 29 | 37 | 37.5 | 20.3 | 6 | 10 | 40 | 1000 | 12 |
40 | 4 | 1.2 | 42.5 | 33 | 45 | 37.5 | 20.3 | 5.5 | 10 | 40 | 1600 | 13 |
40 | 4 | 1.2 | 57.5 | 30 | 45 | 52.5 | 20.3 | 6 | 15 | 20 | 800 | 15 |
45 | 4 | 1.2 | 42.5 | 35 | 50 | 37.5 | 20.3 | 5 | 10 | 40 | 1800 | 15 |
50 | 4 | 1.2 | 57.5 | 30 | 45 | 52.5 | 20.3 | 5.5 | 15 | 20 | 1000 | 18 |
55 | 4 | 1.2 | 42.5 | 40 | 55 | 37.5 | 20.3 | 4.5 | 10 | 40 | 2200 | 18 |
60 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 5 | 15 | 20 | 1200 | 20 |
75 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 4.5 | 15 | 20 | 1500 | 22 |
80 | 4 | 1.2 | 57.5 | 38 | 54 | 52.5 | 20.3 | 4 | 15 | 20 | 1600 | 22 |
90 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 3.5 | 15 | 20 | 1800 | 25 |
100 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 3.2 | 15 | 20 | 2000 | 27.5 |
100 | 4 | 1.2 | 57.5 | 45 | 55 | 52.5 | 20.3 | 3.2 | 15 | 20 | 2000 | 27.5 |
110 | 4 | 1.2 | 57.5 | 45 | 65 | 52.5 | 20.3 | 3 | 15 | 20 | 2200 | 28 |
Voltage | 800V.DC(85℃)900V(70℃) | |||||||||||
Cn (uF) | number of wires | φD (mm) | L(mm)±1 | T(mm)±1 | H(mm)±1 | Pitch(mm) | ESR (mΩ) | ESL (nH) | dv/dt (V/μS) | Ipk (A) | Irms(A) (@10KHz 85℃) | |
P1 | P2 | |||||||||||
2 | 2 | 0.8 | 32 | 11 | 21 | 27.5 | 31 | 10 | 75 | 150 | 3.5 | |
4 | 2 | 0.8 | 32 | 15 | 25 | 27.5 | 15.5 | 10 | 75 | 300 | 5.5 | |
6 | 2 | 1 | 32 | 18 | 28 | 27.5 | 10.5 | 10 | 75 | 450 | 7.5 | |
8 | 2 | 1 | 32 | 21 | 31 | 27.5 | 8 | 10 | 75 | 600 | 9.5 | |
15 | 2 | 1.2 | 42.5 | 24 | 44 | 37.5 | 10 | 10 | 40 | 600 | 10 | |
20 | 4 | 1.2 | 42.5 | 29 | 37 | 37.5 | 20.3 | 7.5 | 10 | 40 | 800 | 12 |
30 | 4 | 1.2 | 42.5 | 33 | 45 | 37.5 | 20.3 | 4.5 | 10 | 40 | 1200 | 16 |
35 | 4 | 1.2 | 57.5 | 30 | 45 | 52.5 | 20.3 | 5.5 | 15 | 20 | 700 | 14 |
45 | 4 | 1.2 | 42.5 | 35 | 50 | 37.5 | 20.3 | 4.2 | 10 | 40 | 1800 | 17 |
50 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 4.5 | 15 | 20 | 1000 | 18 |
55 | 4 | 1.2 | 42.5 | 40 | 55 | 37.5 | 20.3 | 4 | 10 | 40 | 2200 | 18 |
60 | 4 | 1.2 | 57.5 | 38 | 54 | 52.5 | 20.3 | 4.5 | 15 | 20 | 1200 | 20 |
70 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 3.5 | 15 | 20 | 1400 | 22 |
75 | 4 | 1.2 | 57.5 | 45 | 55 | 52.5 | 20.3 | 3.2 | 15 | 20 | 1500 | 24 |
85 | 4 | 1.2 | 57.5 | 45 | 65 | 52.5 | 20.3 | 3 | 15 | 20 | 1700 | 26 |
Voltage | 1100V.DC(85℃) 1200V (70℃) | |||||||||||
Cn (uF) | number of wires | φD (mm) | L(mm)±1 | T(mm)±1 | H(mm)±1 | Pitch(mm) | ESR (mΩ) | ESL (nH) | dv/dt (V/μS) | Ipk (A) | Irms(A) (@10KHz 85℃) | |
P1 | P2 | |||||||||||
1 | 2 | 0.8 | 32 | 11 | 21 | 27.5 | 45.5 | 10 | 95 | 95 | 3 | |
2 | 2 | 0.8 | 32 | 15 | 25 | 27.5 | 23 | 10 | 95 | 190 | 4.5 | |
3 | 2 | 1 | 32 | 18 | 28 | 27.5 | 15.5 | 10 | 95 | 285 | 6 | |
4 | 2 | 1 | 32 | 21 | 31 | 27.5 | 11.5 | 10 | 95 | 380 | 8 | |
10 | 2 | 1.2 | 42.5 | 24 | 44 | 37.5 | 11 | 10 | 40 | 429 | 11 | |
15 | 4 | 1.2 | 42.5 | 29 | 37 | 37.5 | 20.3 | 8 | 10 | 40 | 600 | 15 |
20 | 4 | 1.2 | 42.5 | 30 | 45 | 37.5 | 20.3 | 5 | 10 | 40 | 800 | 18 |
20 | 4 | 1.2 | 42.5 | 33 | 45 | 37.5 | 20.3 | 5 | 10 | 40 | 800 | 18 |
20 | 4 | 1.2 | 57.5 | 30 | 45 | 52.5 | 20.3 | 7 | 15 | 25 | 500 | 15 |
25 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 6 | 15 | 25 | 625 | 17 |
30 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 5 | 15 | 25 | 750 | 18 |
35 | 4 | 1.2 | 42.5 | 35 | 50 | 37.5 | 20.3 | 4.5 | 10 | 40 | 1400 | 19 |
40 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 5 | 15 | 25 | 1000 | 18 |
45 | 4 | 1.2 | 57.5 | 38 | 54 | 52.5 | 20.3 | 4.5 | 15 | 25 | 1125 | 18.5 |
50 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 3.5 | 15 | 25 | 1250 | 20 |
55 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 3.5 | 15 | 25 | 1375 | 21 |
60 | 4 | 1.2 | 57.5 | 45 | 55 | 52.5 | 20.3 | 3.2 | 15 | 25 | 1500 | 22 |
70 | 4 | 1.2 | 57.5 | 45 | 65 | 52.5 | 20.3 | 3 | 15 | 25 | 1750 | 24 |
Voltage | 1200V.DC(85℃) 1500V (70℃) | |||||||||||
Cn (uF) | number of wires | φD (mm) | L(mm)±1 | T(mm)±1 | H(mm)±1 | Pitch(mm) | ESR (mΩ) | ESL (nH) | dv/dt (V/μS) | Ipk (A) | Irms(A) (@10KHz 85℃) | |
P1 | P2 | |||||||||||
1 | 2 | 0.8 | 32 | 11 | 21 | 27.5 | 43 | 10 | 100 | 100 | 3 | |
2 | 2 | 0.8 | 32 | 15 | 25 | 27.5 | 21.5 | 10 | 100 | 200 | 5 | |
3 | 2 | 1 | 32 | 18 | 28 | 27.5 | 14.5 | 10 | 100 | 300 | 6.5 | |
4 | 2 | 1 | 32 | 21 | 31 | 27.5 | 11 | 10 | 100 | 400 | 8 | |
12 | 4 | 1.2 | 42.5 | 30 | 45 | 37.5 | 20.3 | 5 | 10 | 50 | 600 | 15 |
12 | 4 | 1.2 | 57.5 | 30 | 45 | 52.5 | 20.3 | 11 | 15 | 40 | 480 | 13 |
18 | 4 | 1.2 | 42.5 | 35 | 50 | 37.5 | 20.3 | 4.5 | 10 | 50 | 900 | 18 |
20 | 4 | 1.2 | 42.5 | 40 | 55 | 37.5 | 20.3 | 7 | 15 | 50 | 1000 | 16 |
20 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 8 | 15 | 40 | 800 | 17 |
25 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 7 | 15 | 40 | 1000 | 20 |
40 | 4 | 1.2 | 57.5 | 45 | 55 | 52.5 | 20.3 | 6 | 15 | 25 | 1000 | 22 |
45 | 4 | 1.2 | 57.5 | 45 | 65 | 52.5 | 20.3 | 5.5 | 15 | 25 | 1125 | 24 |
Voltage | 1800V.DC(85℃) 2000V (70℃) | |||||||||||
Cn (uF) | number of wires | φD (mm) | L(mm)±1 | T(mm)±1 | H(mm)±1 | Pitch(mm) | ESR (mΩ) | ESL (nH) | dv/dt (V/μS) | Ipk (A) | Irms(A) (@10KHz 85℃) | |
P1 | P2 | |||||||||||
6 | 4 | 1.2 | 42.5 | 30 | 45 | 37.5 | 20.3 | 24 | 10 | 100 | 600 | 5 |
8 | 4 | 1.2 | 42.5 | 35 | 50 | 37.5 | 20.3 | 20 | 10 | 100 | 800 | 8 |
10 | 4 | 1.2 | 42.5 | 40 | 55 | 37.5 | 20.3 | 18 | 10 | 100 | 1000 | 10 |
8 | 4 | 1.2 | 57.5 | 30 | 45 | 52.5 | 20.3 | 12 | 15 | 50 | 400 | 13 |
10 | 4 | 1.2 | 57.5 | 35 | 50 | 52.5 | 20.3 | 10 | 15 | 50 | 500 | 17 |
15 | 4 | 1.2 | 57.5 | 42.5 | 56 | 52.5 | 20.3 | 8 | 15 | 50 | 750 | 20 |
18 | 4 | 1.2 | 57.5 | 45 | 55 | 52.5 | 20.3 | 7.5 | 15 | 50 | 900 | 21 |
20 | 4 | 1.2 | 57.5 | 45 | 65 | 52.5 | 20.3 | 7 | 15 | 45 | 900 | 22 |
Feature
1. Plastic case, eco-friendly resin potting;
2. PCB mounted, pin leads;
3. polypropylene dielectric;
4. Customizable(capacitance, voltage,dimension,pitch distance);
5. Withstand extremely temperature: High Temperature, Humidity

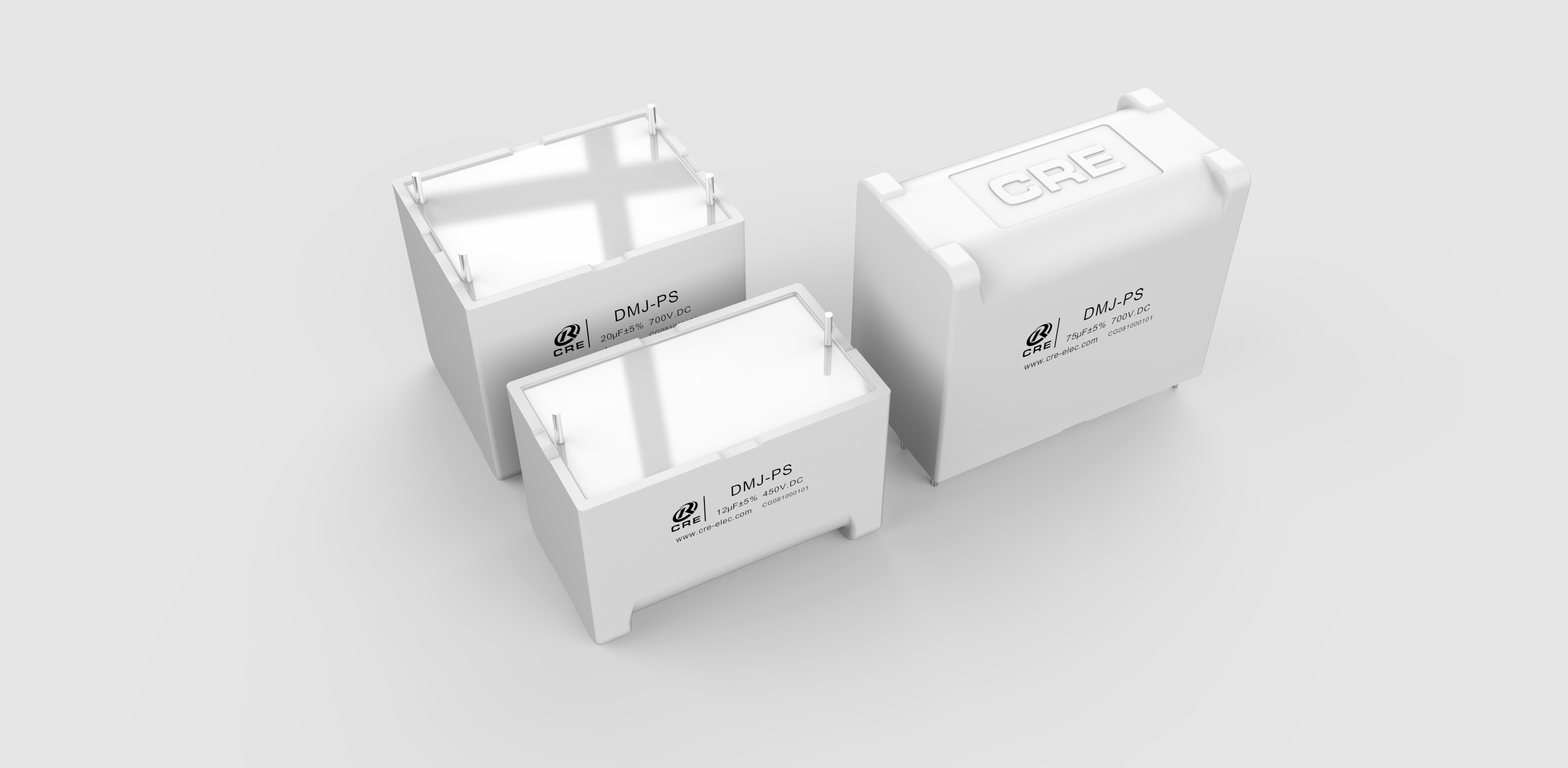

Product detail pictures:
