Short Description:

AC  filter (AKMJ-PS series)

Humidity Robustness Grades Test Damp Heat, Steady State at Rated Voltage.

CRE AC film capacitor is able to effectively store renewable energy, even in extreme operating environment.




Download as PDF

Product Detail

Product Tags

AC filter Specification

Power conversion has been an essential technology in industrial applications, commercial and even medical applications as well. Therefore, when it comes to selecting power conversion solution for any application, it is crucial to take product performance such as power loss into account. CRE New Energy offers reliable and optimized power conversion solution for industrial, medical and consumer sectors. Our metallized film DC-Link capacitor has been widely implemented in AC/AC topology of motor drivers and inverters as an intermediate DC component.

Specification table

Voltage 550V.DC(85℃)  600V（70℃）

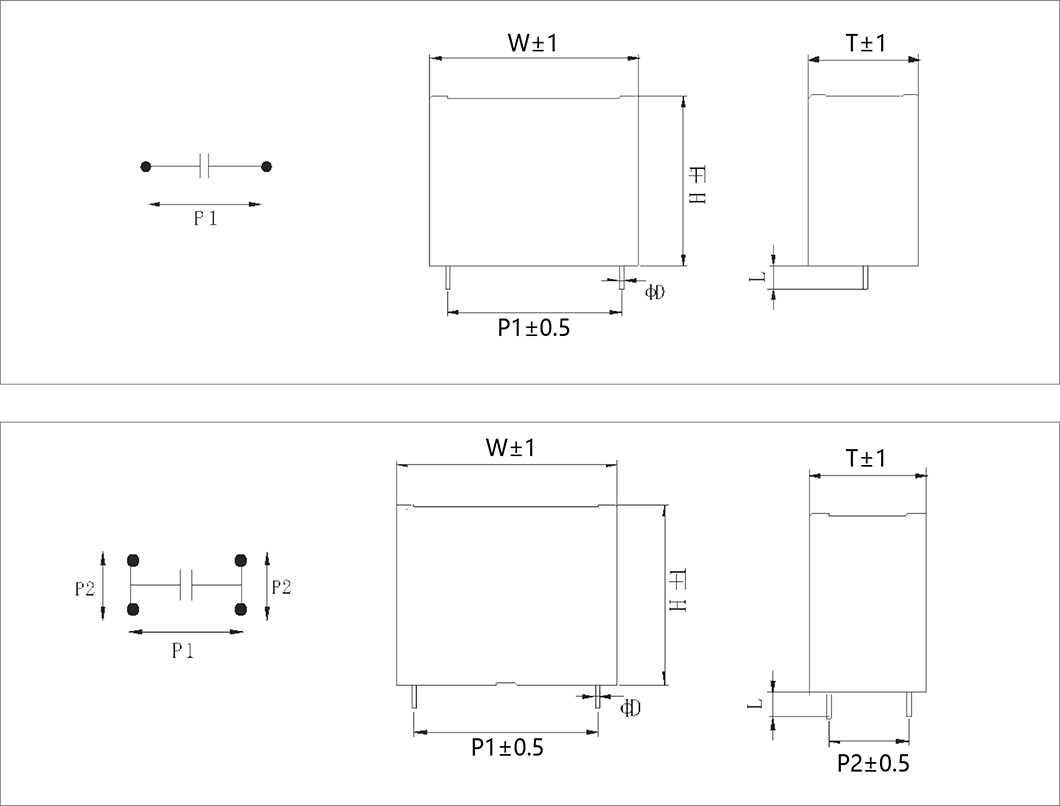

Cn (uF)  number of wires φD (mm) L(mm)±1 T(mm)±1 H(mm)±1 Pitch(mm) ESR     (mΩ) ESL   (nH) dv/dt      (V/μS) Ipk  (A) Irms(A)   （@10KHz 85℃）
P1 P2
4 2 0.8 32 11 21 27.5 20.5 10 75 300 4
7 2 0.8 32 15 25 27.5 11.5 10 75 525 6.5
10 2 1 32 18 28 27.5 8 10 75 750 9
12 2 1 32 21 31 27.5 7 10 75 900 10
20 2 1.2 42.5 24.5 27.5 37.5 7 10 40 800 11
30 4 1.2 42.5 24 44 37.5 20.3 6.5 10 40 1200 15
45 4 1.2 42.5 29 37 37.5 20.3 6 10 40 1800 17
60 4 1.2 42.5 30 45 37.5 20.3 4.5 15 40 2400 18.5
60 4 1.2 42.5 33 45 37.5 20.3 4.5 15 40 2400 18.5
75 4 1.2 42.5 35 50 37.5 20.3 3 15 20 1500 19
75 4 1.2 57.5 30 45 52.5 20.3 3.2 15 20 1500 18
100 4 1.2 42.5 40 55 37.5 20.3 2.8 15 20 2000 20
100 4 1.2 57.5 35 50 52.5 20.3 3 15 20 2000 22
110 4 1.2 57.5 35 50 52.5 20.3 3 15 20 2200 23
120 4 1.2 57.5 38 54 52.5 20.3 2.8 15 20 2400 25
150 4 1.2 57.5 42.5 56 52.5 20.3 2.5 15 20 3000 28
150 4 1.2 57.5 45 55 52.5 20.3 2.5 15 20 3000 28
200 4 1.2 57.5 45 65 52.5 20.3 2.3 15 20 4000 28
Voltage 700V.DC（85℃）800V（70℃）
Cn (uF)  number of wires φD (mm) L(mm)±1 T(mm)±1 H(mm)±1 Pitch(mm) ESR     (mΩ) ESL   (nH) dv/dt      (V/μS) Ipk  (A) Irms(A)   （@10KHz 85℃）
P1 P2
3 2 0.8 32 11 21 27.5 23 10 75 225 4
5 2 0.8 32 15 25 27.5 14 10 75 375 6
8 2 1 32 18 28 27.5 8.5 10 75 600 8.5
10 2 1 32 21 31 27.5 7 10 75 750 10
10 2 1.2 42.5 24.5 27.5 37.5 10 10 40 400 10
20 4 1.2 42.5 24 44 37.5 20.3 7.5 10 40 800 12
25 4 1.2 42.5 29 37 37.5 20.3 6 10 40 1000 12
40 4 1.2 42.5 33 45 37.5 20.3 5.5 10 40 1600 13
40 4 1.2 57.5 30 45 52.5 20.3 6 15 20 800 15
45 4 1.2 42.5 35 50 37.5 20.3 5 10 40 1800 15
50 4 1.2 57.5 30 45 52.5 20.3 5.5 15 20 1000 18
55 4 1.2 42.5 40 55 37.5 20.3 4.5 10 40 2200 18
60 4 1.2 57.5 35 50 52.5 20.3 5 15 20 1200 20
75 4 1.2 57.5 35 50 52.5 20.3 4.5 15 20 1500 22
80 4 1.2 57.5 38 54 52.5 20.3 4 15 20 1600 22
90 4 1.2 57.5 42.5 56 52.5 20.3 3.5 15 20 1800 25
100 4 1.2 57.5 42.5 56 52.5 20.3 3.2 15 20 2000 27.5
100 4 1.2 57.5 45 55 52.5 20.3 3.2 15 20 2000 27.5
110 4 1.2 57.5 45 65 52.5 20.3 3 15 20 2200 28
Voltage 800V.DC（85℃）900V（70℃）
Cn (uF)  number of wires φD (mm) L(mm)±1 T(mm)±1 H(mm)±1 Pitch(mm) ESR     (mΩ) ESL   (nH) dv/dt      (V/μS) Ipk  (A) Irms(A)   （@10KHz 85℃）
P1 P2
2 2 0.8 32 11 21 27.5 31 10 75 150 3.5
4 2 0.8 32 15 25 27.5 15.5 10 75 300 5.5
6 2 1 32 18 28 27.5 10.5 10 75 450 7.5
8 2 1 32 21 31 27.5 8 10 75 600 9.5
15 2 1.2 42.5 24 44 37.5 10 10 40 600 10
20 4 1.2 42.5 29 37 37.5 20.3 7.5 10 40 800 12
30 4 1.2 42.5 33 45 37.5 20.3 4.5 10 40 1200 16
35 4 1.2 57.5 30 45 52.5 20.3 5.5 15 20 700 14
45 4 1.2 42.5 35 50 37.5 20.3 4.2 10 40 1800 17
50 4 1.2 57.5 35 50 52.5 20.3 4.5 15 20 1000 18
55 4 1.2 42.5 40 55 37.5 20.3 4 10 40 2200 18
60 4 1.2 57.5 38 54 52.5 20.3 4.5 15 20 1200 20
70 4 1.2 57.5 42.5 56 52.5 20.3 3.5 15 20 1400 22
75 4 1.2 57.5 45 55 52.5 20.3 3.2 15 20 1500 24
85 4 1.2 57.5 45 65 52.5 20.3 3 15 20 1700 26
Voltage 1100V.DC(85℃) 1200V (70℃)
Cn (uF)  number of wires φD (mm) L(mm)±1 T(mm)±1 H(mm)±1 Pitch(mm) ESR     (mΩ) ESL   (nH) dv/dt      (V/μS) Ipk  (A) Irms(A)   （@10KHz 85℃）
P1 P2
1 2 0.8 32 11 21 27.5 45.5 10 95 95 3
2 2 0.8 32 15 25 27.5 23 10 95 190 4.5
3 2 1 32 18 28 27.5 15.5 10 95 285 6
4 2 1 32 21 31 27.5 11.5 10 95 380 8
10 2 1.2 42.5 24 44 37.5 11 10 40 429 11
15 4 1.2 42.5 29 37 37.5 20.3 8 10 40 600 15
20 4 1.2 42.5 30 45 37.5 20.3 5 10 40 800 18
20 4 1.2 42.5 33 45 37.5 20.3 5 10 40 800 18
20 4 1.2 57.5 30 45 52.5 20.3 7 15 25 500 15
25 4 1.2 57.5 35 50 52.5 20.3 6 15 25 625 17
30 4 1.2 57.5 35 50 52.5 20.3 5 15 25 750 18
35 4 1.2 42.5 35 50 37.5 20.3 4.5 10 40 1400 19
40 4 1.2 57.5 35 50 52.5 20.3 5 15 25 1000 18
45 4 1.2 57.5 38 54 52.5 20.3 4.5 15 25 1125 18.5
50 4 1.2 57.5 42.5 56 52.5 20.3 3.5 15 25 1250 20
55 4 1.2 57.5 42.5 56 52.5 20.3 3.5 15 25 1375 21
60 4 1.2 57.5 45 55 52.5 20.3 3.2 15 25 1500 22
70 4 1.2 57.5 45 65 52.5 20.3 3 15 25 1750 24
Voltage 1200V.DC(85℃) 1500V (70℃)
Cn (uF)  number of wires φD (mm) L(mm)±1 T(mm)±1 H(mm)±1 Pitch(mm) ESR     (mΩ) ESL   (nH) dv/dt      (V/μS) Ipk  (A) Irms(A)   （@10KHz 85℃）
P1 P2
1 2 0.8 32 11 21 27.5 43 10 100 100 3
2 2 0.8 32 15 25 27.5 21.5 10 100 200 5
3 2 1 32 18 28 27.5 14.5 10 100 300 6.5
4 2 1 32 21 31 27.5 11 10 100 400 8
12 4 1.2 42.5 30 45 37.5 20.3 5 10 50 600 15
12 4 1.2 57.5 30 45 52.5 20.3 11 15 40 480 13
18 4 1.2 42.5 35 50 37.5 20.3 4.5 10 50 900 18
20 4 1.2 42.5 40 55 37.5 20.3 7 15 50 1000 16
20 4 1.2 57.5 35 50 52.5 20.3 8 15 40 800 17
25 4 1.2 57.5 42.5 56 52.5 20.3 7 15 40 1000 20
40 4 1.2 57.5 45 55 52.5 20.3 6 15 25 1000 22
45 4 1.2 57.5 45 65 52.5 20.3 5.5 15 25 1125 24
Voltage 1800V.DC(85℃) 2000V (70℃)
Cn (uF)  number of wires φD (mm) L(mm)±1 T(mm)±1 H(mm)±1 Pitch(mm) ESR     (mΩ) ESL   (nH) dv/dt      (V/μS) Ipk  (A) Irms(A)   （@10KHz 85℃）
P1 P2
6 4 1.2 42.5 30 45 37.5 20.3 24 10 100 600 5
8 4 1.2 42.5 35 50 37.5 20.3 20 10 100 800 8
10 4 1.2 42.5 40 55 37.5 20.3 18 10 100 1000 10
8 4 1.2 57.5 30 45 52.5 20.3 12 15 50 400 13
10 4 1.2 57.5 35 50 52.5 20.3 10 15 50 500 17
15 4 1.2 57.5 42.5 56 52.5 20.3 8 15 50 750 20
18 4 1.2 57.5 45 55 52.5 20.3 7.5 15 50 900 21
20 4 1.2 57.5 45 65 52.5 20.3 7 15 45 900 22

Feature

1. Plastic case, eco-friendly resin potting;

2. PCB mounted, pin leads;

3. polypropylene dielectric;

4. Customizable(capacitance, voltage,dimension,pitch distance);

5. Withstand extremely temperature: High Temperature, Humidity
